Benin HOWO 22000L fuel delivery tanker truck

Benin HOWO 22000L fuel delivery tanker truck

The tanker boasts a 22,000 liter effective capacity tank. Its main body is constructed from a minimum 5 mm thick Q345 carbon steel, which also serves as protective structural material. It comes fully outfitted with top tier Chinese brand fuel pumps, valves, piping and a complete fuel dispensing unit. A built-in access ladder simplifies routine operation, and custom multi-compartment tank layouts are available to match diverse transport requirements.

  • Capacidad de trabajo :

    22000L
  • Tipo cabina :

    HOWO NX single cabin, with one sleeper
  • Sistema de transmisión :

    6x4
  • Distancia entre ejes (mm) :

    4600+1350
  • Específico del motor :

    WD615.47
  • Caja de cambios :

    HW19710C, 10 forwards & 2 reverses
  • Eje delantero (kg) :

    7500
  • Eje trasero (kg) :

    13000*2
Nuevos productos

This HOWO fuel tanker is fitted with a WD series 6 cylinder inline water-cooled diesel engine, featuring turbocharging and intercooling to deliver a peak power output of 371 HP. It pairs with a 10 forward/2 reverse transmission mated to a heavy duty diaphragm clutch.



The tanker boasts a 22,000 liter effective capacity tank. Its main body is constructed from a minimum 5 mm thick Q345 carbon steel, which also serves as protective structural material. It comes fully outfitted with top tier Chinese-brand fuel pumps, valves, piping and a complete fuel dispensing unit. A built-in access ladder simplifies routine operation, and custom multi-compartment tank layouts are available to match diverse transport requirements.

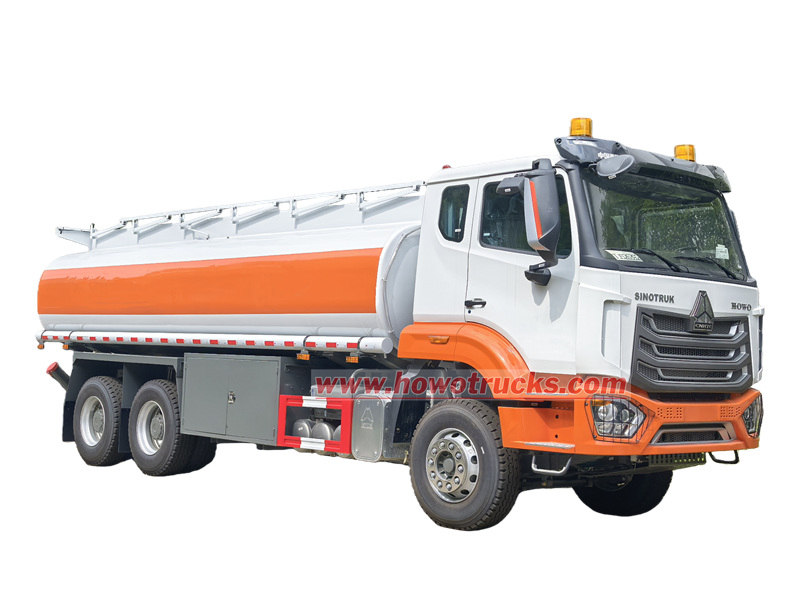

 HOWO 6x4 fuel tank truck

*HOWO Heavy 6x4 Diesel Fuel Tank Truck*



↑ ↑ ↑

Kindly veiw the vedio for CS Trucks Group,professional manufacturer in HOWO fuel tank truck.



Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

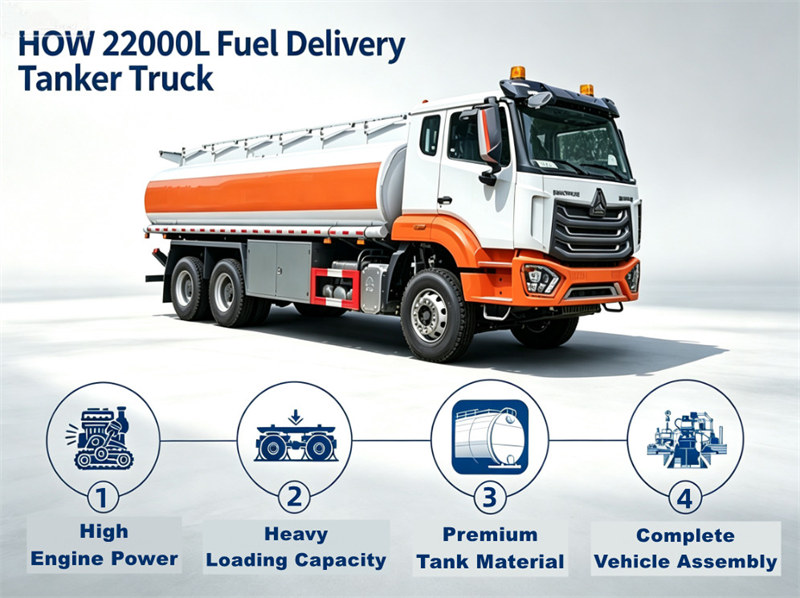

Features:

 1. High Engine Power:

Powerful Sinotruk heavy duty engine with strong torque output. It easily conquers muddy, bumpy rural roads widely seen in Africa, stable power output even under full-load fuel transportation, no stall issues on rugged mountain routes.



2. Heavy Loading Capacity:

22000L large capacity integral tank body. One truck carries more fuel per trip, effectively cutting delivery frequency and overall transport cost. Optimized heavy load chassis & reinforced tires fit long distance bulk fuel distribution for African energy fleets.



3. Premium Tank Material:

Adopts anti-rust, corrosion-resistant high strength aluminum alloy tank. Resists erosion from low-grade local crude oil & diesel in Africa, zero leakage risk under harsh high-temperature tropical weather, long service life with low maintenance cost.



4. Complete Vehicle Assembly:

Full set standard fuel pumping, metering & safety explosion-proof accessories. One stop delivery without extra equipment purchase. Mature assembly process, spare parts widely available across Africa, local mechanics can conduct daily maintenance effortlessly.



HOWO NX heavy 22000L fuel pump truck



Ⅱ.Product Parameter For HOWO NX Diesel Delivery Truck  « « «

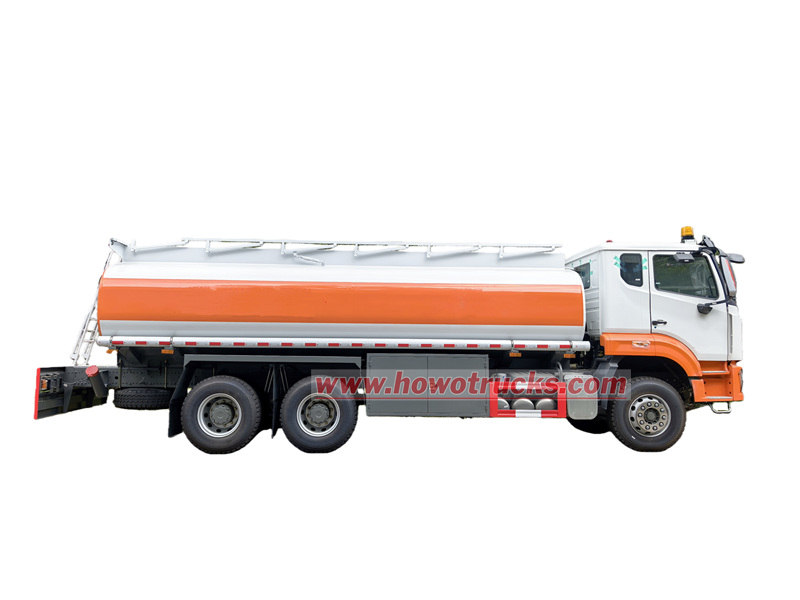

 HOWO 6x4 fuel pump truck



HOWO NX 6x4 Fuel Tank Truck

Drive system

6X4

Chassis

HOWO

Vehicle Main Dimensions

Dimensions(L x W x H)mm

10300*2350*2950

Wheel base (mm)

4600+1370

Overhang (front/rear) (mm)

1380/1820

Approach/Departure angle(°)

22/17

Weight in KGS

Curb Weight

14500

GVW.

25000

Max. driving speed(km/h)

105

Engine

Model

WD615.47

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

371 HP

Emission standard

Euro 2

Gearbox

HW19710, 10 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

400L

Tire

12.00R20  10 pcs+1 spare tire

Upper Body

Fact cubage

22000Liters

Protective material

Q345 carbon steel

Tank meterial

<5mm> carbon steel

Equipment

1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser
2.Equipped  with a ladder on tank
3.It can be design to have several compartments according to your requirements
4.Equipped with speed limiter. The speed limit of 95 km/h

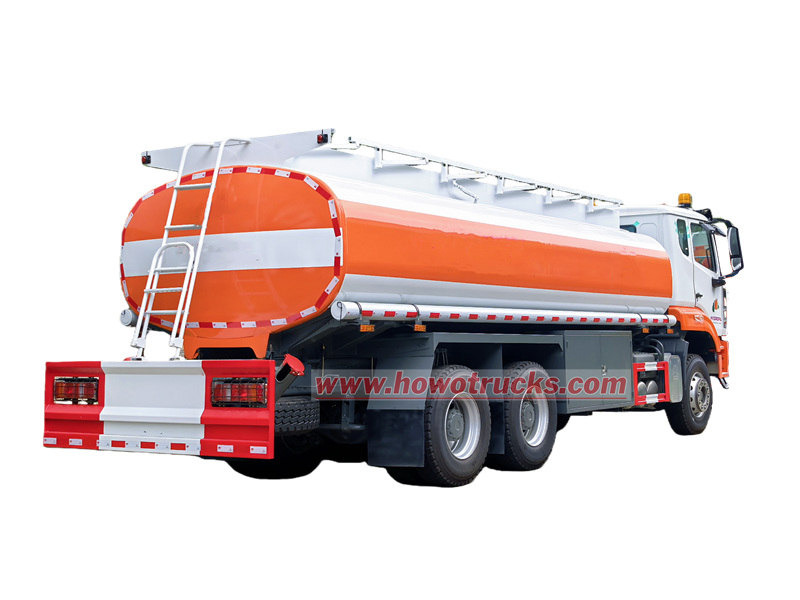

HOWO fuel delivery truck

Ⅲ.HOWO Heavy Fuel Tank Truck Details « « «

♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

♦ The oil pump is connected to the chassis via a pump mounting bracket.



fuel pump fuel pump



♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.



fuel pump





Circular Arc Gear Oil Pump

Model

80YHCB-60

Pressure

0.6 MPa

Flow

60 m³/h

Power Supplied

11 KW

Rotational Speed

970 r/min

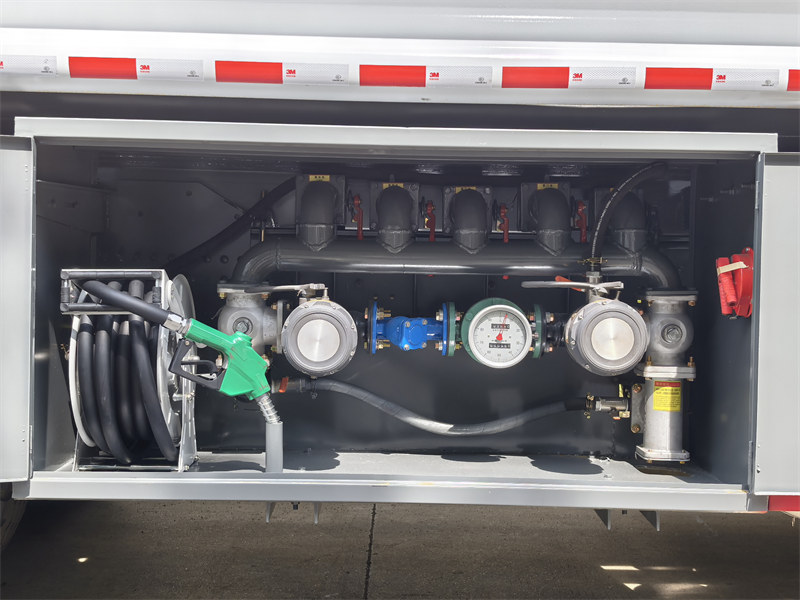

✦ Ⅳ.HOWO Fuel Truck Pipeline Operation Diagram « « «



 Pump out:

(1) Turn the four-position three-way ball valve mark point to the direction of forward B);

      Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other

(2) Open two-way Ball Valve 1to pump oil;

(3) If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be       achieved refueling refueling machine.



Howo fuel tank truck



♦ Pump in:

(1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;

(2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.

(3) Other functions:The user can adjust and realize various functions according to the oll circult principle.



  • fuel tank truck
  • fuel tank truck
  • fuel tank truck



.HOWO Fuel Truck Safety Protection Devices « « «



 The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

 A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

  • Howo heavy 25000L fuel tank truck
  • Howo heavy 25000L fuel tank truck
  • Howo 20ton crane truck



 To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

 Fire extinguishers are provided on both sides of the oil tank.





✦ .HOWO Fuel Truck Truck Customer Review « « «



HOWO heavy 22000L fuel tank truck





HOWO fuel tank truck

“We’ve run this HOWO 22000L fuel tanker across rough rural African roads for over a year. The high-torque engine handles bumpy, muddy terrain effortlessly, and the thick anti-corrosion tank never leaks even under harsh weather. The manufacturer’s overseas spare parts support saves us tons of downtime—definitely the most sturdy fuel transport truck we’ve ever purchased.”



fuel tank truck

“Our fleet added 5 units of Sinotruk fuel tank trucks last quarter. The large loading capacity cuts our delivery trips in half, greatly lowering transport costs. Robust chassis and heavy-duty tires adapt perfectly to Africa’s poor road conditions, and the full set of fuel pumping assemblies work consistently without frequent breakdowns. Communication and delivery schedule were smooth throughout the whole order.”



fuel tank truck

“As a small gas station owner in West Africa, I needed an affordable yet dependable fuel delivery truck. This Sinotruk tanker balances powerful performance and easy maintenance. Local mechanics can fix minor issues quickly, and the tank material resists corrosion from low-quality local fuel. The supplier provides detailed operation guides tailored for African users, their service is thoughtful and professional.”




⇒ Products--100% Customized Level One!
⇒ Transportation--100% Safety, Convenience, Efficient!
⇒ Services--7days + 24hours Safetify Service!


»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



China professional HOWO fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely
