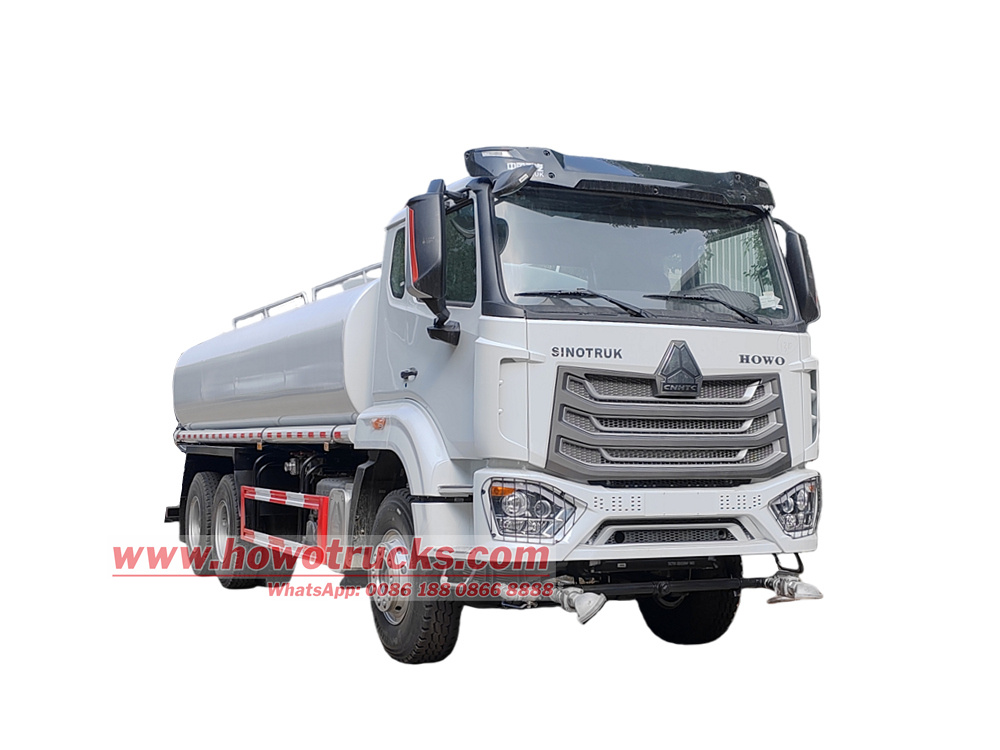

HOWO diesel delivery tanker truck for Congo

HOWO diesel delivery tanker truck for Congo

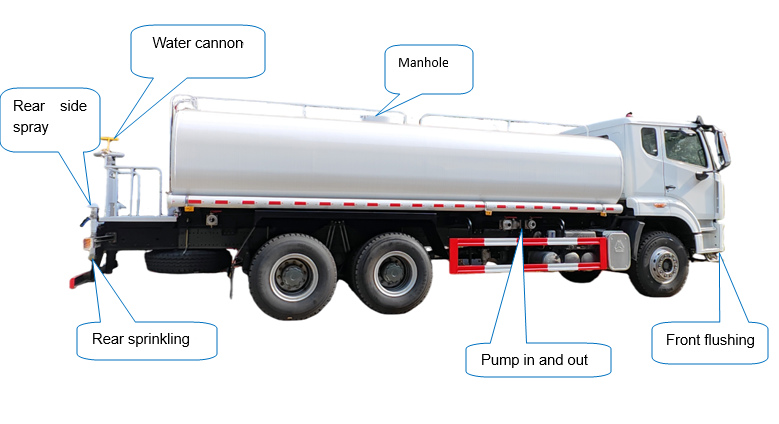

The HOWO 20cbm water sprayer truck, with 4600+1350mm wheelbase, Weichai WD615.47 engine and HW19710 gearbox. The upper includes a 20cbm curved carbon steel water tank, equipped with four devices: front flushing, rear side spraying, rear water sprinkling, and rear water cannon. It is fitted with an 80QZF-60/90 centrifugal water pump, with a flow rate of 60 m³/h and a lift of 90 m. The pump is equipped with inlet and outlet pipelines, a tail discharge valve, a platform ladder, a guardrail, a tank top guardrail, and a manhole.

  • Capacidad de trabajo :

    20000 liters
  • Tipo cabina :

    Howo NX one and half row cabin
  • Sistema de transmisión :

    6x4,LHD
  • Distancia entre ejes (mm) :

    4600+1350 mm
  • Específico del motor :

    371 HP / Sinotruk WD615.47
  • Caja de cambios :

    Sinotruk HW19710 10-speed, manual
  • Eje delantero (kg) :

    9500
  • Eje trasero (kg) :

    16000*2
Nuevos productos

The HOWO diesel delivery tanker truck for Congo, centered around the HOWO NX371 chassis and equipped with a Weichai WD615.47 engine, is specifically designed for scenarios such as road cleaning and green irrigation. With its large 20cbm water tank capacity, equipped with a high-flow 80QZF-60/90 sprinkler pump and various nozzles including front flushing, rear side spraying, rear sprinkling, and high-pressure water cannon, covering scenarios such as road cleaning, green irrigation, and emergency firefighting



*HOWO 6X4 20 CBM bulk water carrier truck*

-----------------------------------------------------------------

HOWO diesel delivery tanker truck for Congo

 Product Technological Parameters:



HOWO 6X4 20CBM water tanker truck

General

Chassis brand

HOWO H77L

Overall dimension (L*W*H)

9850x2500x3150mm

Wheelbase

4600+1350mm

Curb weight

11250kg

Gross weight

25000kg

Axles loading

VGD95 front axle/MCX16ZG (2 axles)

Max speed

82 km/h

Chassis

Drive mode

6x4

Cabin type

HOWO H77L cabin,one and half row, A/C

Steering

LHD

Tires

10+1

Tires specification

12.00R20

Gear box

HW19710 10-speed,manual

Fuel tank

300L

Engine

Engine model

 WD615.47

Fuel and engine Type

Inline 6-cylinder, water-cooled, four-stroke, with exhaust valve braking, direct injection, turbocharged and intercooled.

Horse power

371HP/ 273kW

Displacement

9.726L

Max torque

1500N.m

Rated speed

2200rpm

Max torque speed

1100-1600rpm

Emission standard

Euro 2

Tops Parameters

Volume of Water Tank

20,000 Liters

Tanker material

Carbon steel, Tanker thinckness : 6mm.

Loading System

Top loading

Body material

High performance wear-resisting carbon steel with anti-corrosion treatment paint, SS304 stainless steel for option

Compartment

1 with internal anti-wave baffles

Manhole

1, European Standards

Spray

Front and rear spray nozzle, rear water cannon

The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze

Sprinkling width

≥14m

Water cannon spray width

28m

Equipment

Ladder,tool box,side pipe storage, Pump in and out valve

Artesian valve,flter, distribution valve, sprinkler head, with self-suction and discharge function

Water pump

Model

80QZF-60/90 centrifugal pump

Flow rate

60 m3/h

Lift

90 m

Head

6.5 m

Input speed

1180 r/min

Self-priming performance

1.5 min/4m

Equipped power

22.2 kW

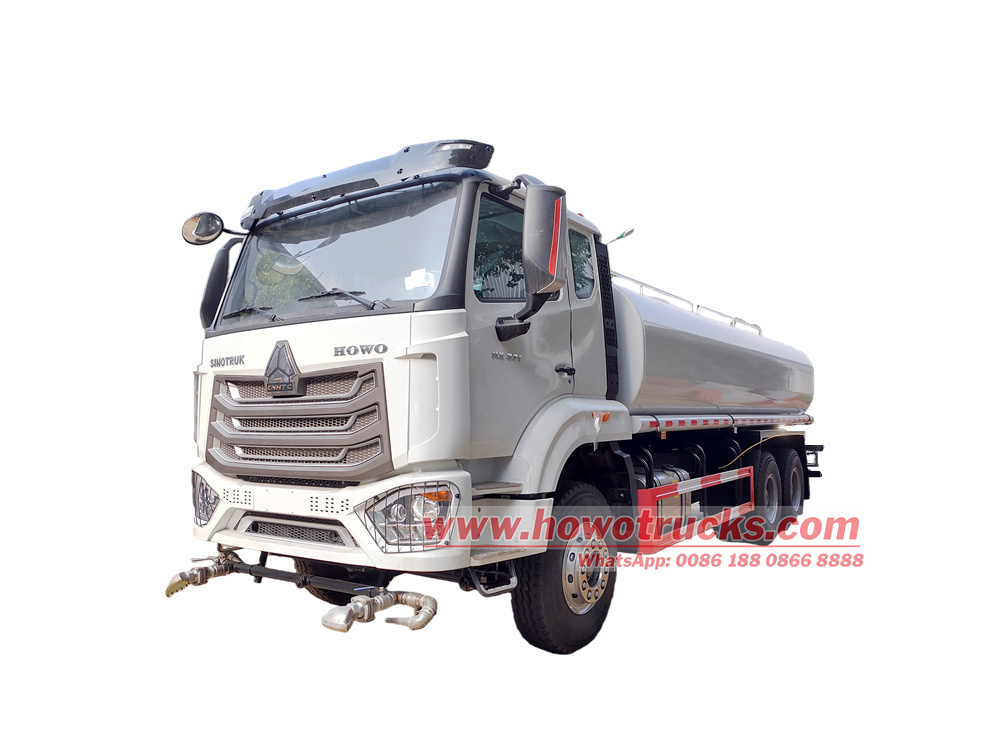

HOWO NX 20000 liters water tanker truck Chassis:

• Chassis model: HOWO NX371

• Drive configuration: 6×4

• Wheelbase: 4600mm + 1350mm (dual-axle layout, stable load-bearing, suitable for large tanks)

• Engine: Weichai WD615.47 diesel engine

• Transmission: HW19710 series 10-speed manual transmission

• Tire: 12.00R20



 Water tank structure:

Material: Made of Q235B carbon steel plate, with a 20 cubic meter curved tank body, with a thickness of 4-6mm, and treated with anti-corrosion measures,



Capacity: High volumetric utilization rate, with wave-proof boards installed inside the tank to reduce the impact of liquid sloshing on the vehicle during operation.

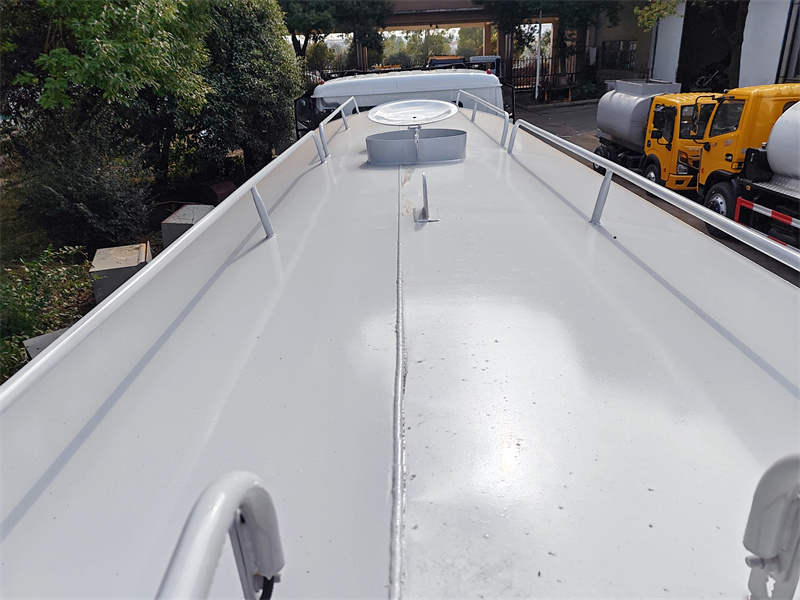

Manhole and ladder: The tank top is equipped with one Φ500mm manhole for maintenance and cleaning; a ladder at the tail and a guardrail on the tank top facilitate operators to get on and off the tank.

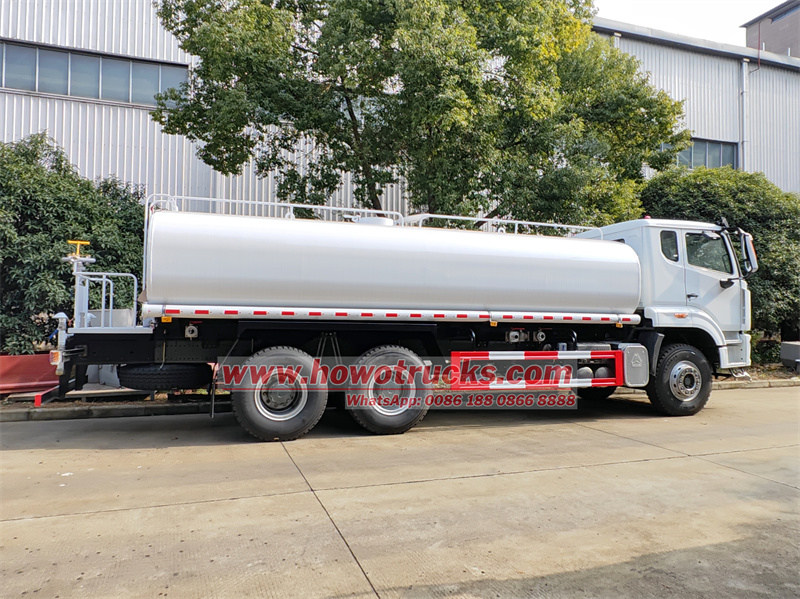

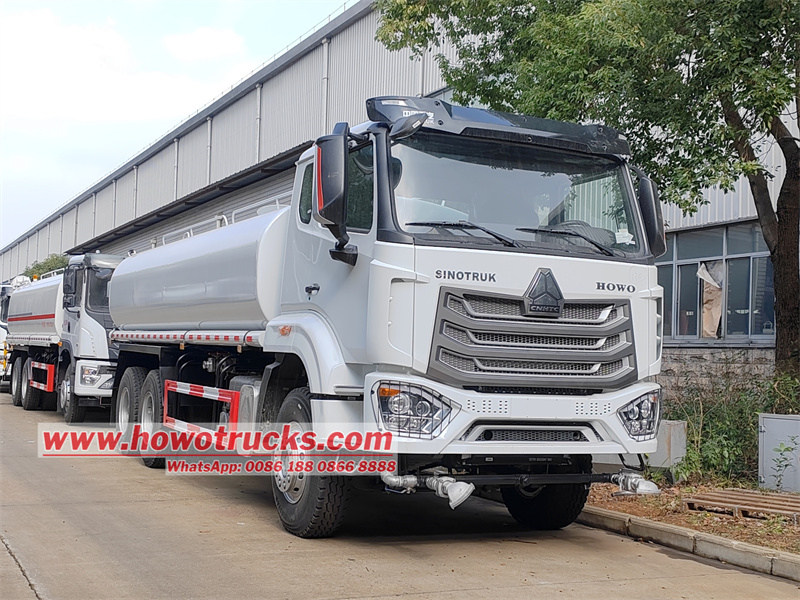

HOWO 6X4 20 CBM bulk water carrier truck



 Water sprinkler system:

 Water pump: 80QZF-60/90 type centrifugal water pump, with a flow rate of 60m³/h, a head of 90m, an input speed of 1180r/min, a self-priming performance of 1.5min/4m, a pump inlet and outlet design, supporting self-priming and self-discharge, and a suction lift of ≥7m.

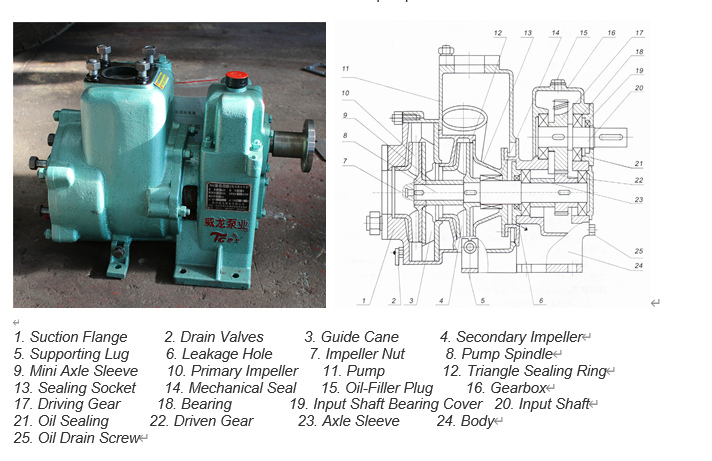

 80QZF-60/90S model water pump

• Sprinkler system:

Forward thrust: With dual nozzles arranged symmetrically, the flushing width is ≥14m, making it suitable for rapid road cleaning.



Rear spray: duckbill nozzle, with a coverage width of ≥8m, used for watering green belts or dust suppression on roads.



Rear sprinkling: With a circular nozzle, the water is sprinkled evenly to avoid localized ponding.



Rear water cannon: It can rotate 360°, with a shooting range of ≥28m. It supports switching between direct flow and spray modes, meeting the needs of long-distance flushing or emergency firefighting.

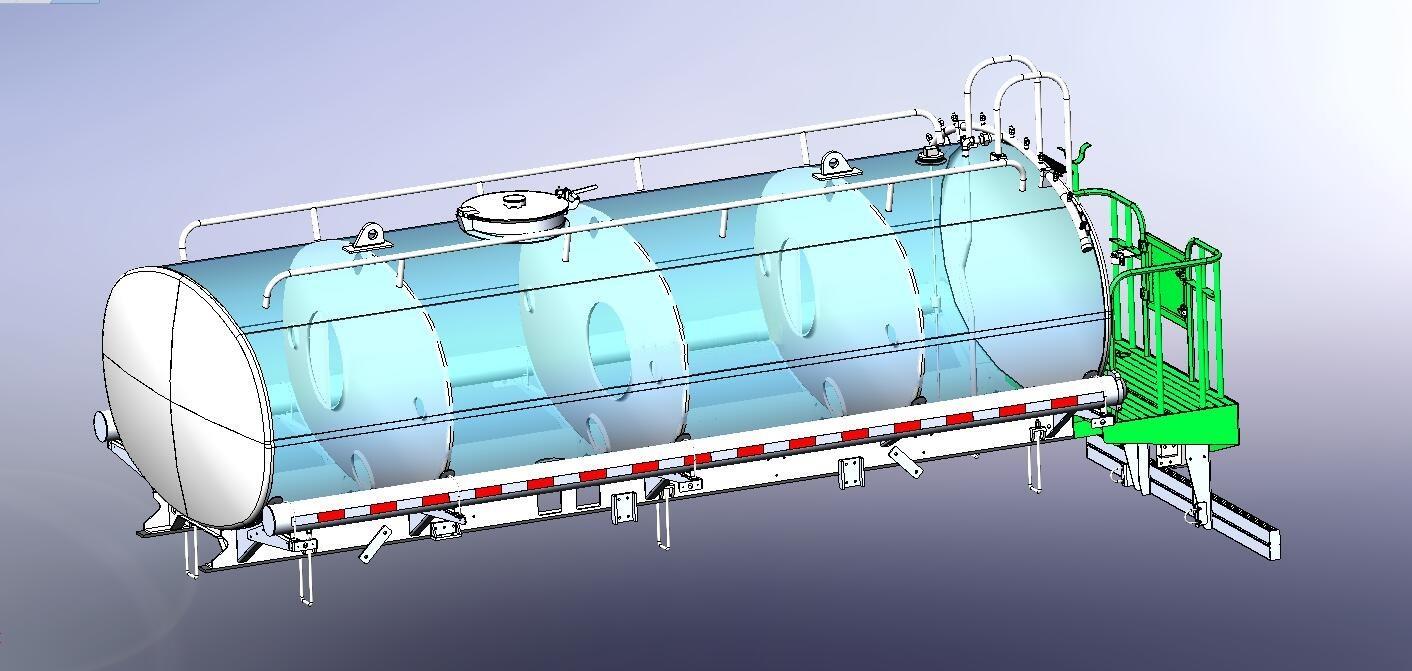

water tanker truck tanker system

water tanker truck tanker system



•  Tail drain valve: used to quickly drain the remaining water in the tank to prevent freezing in winter



 Pipe system: High pressure resistance, corrosion resistance, equipped with quick connectors, and compatible with external fire hoses.



•  Control method: Pneumatic ball valve control, with one-button operation in the cab, saving time and effort.

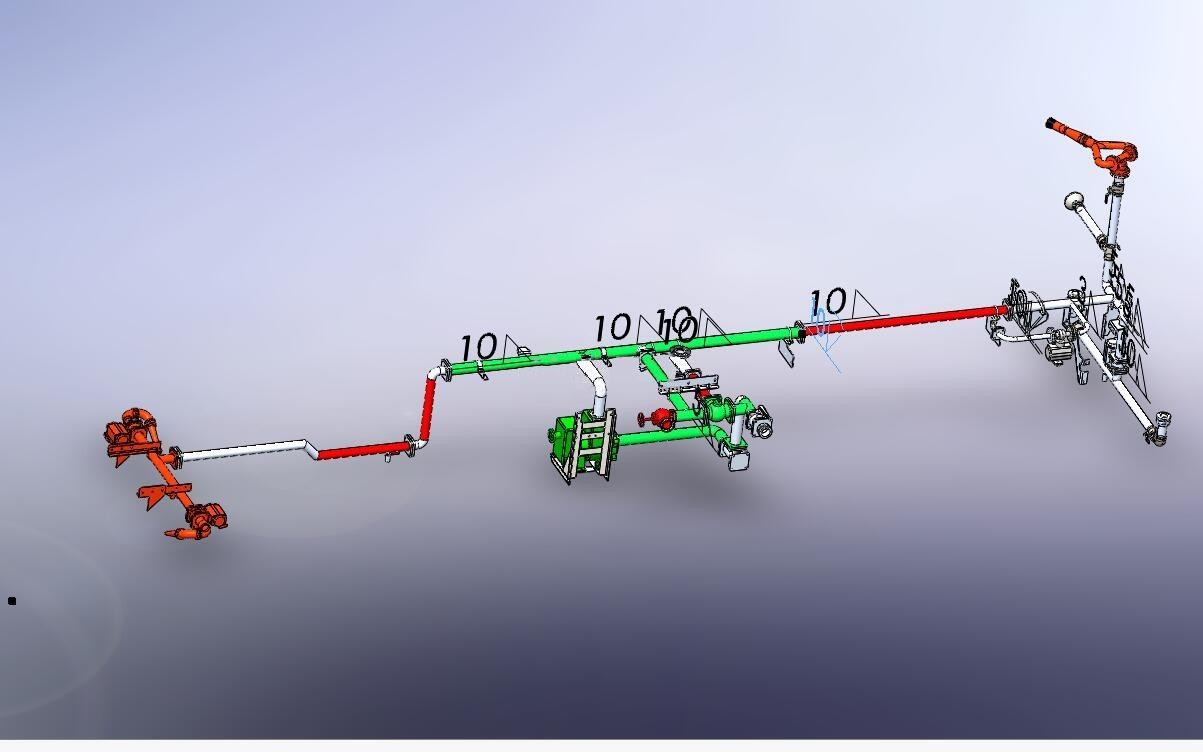

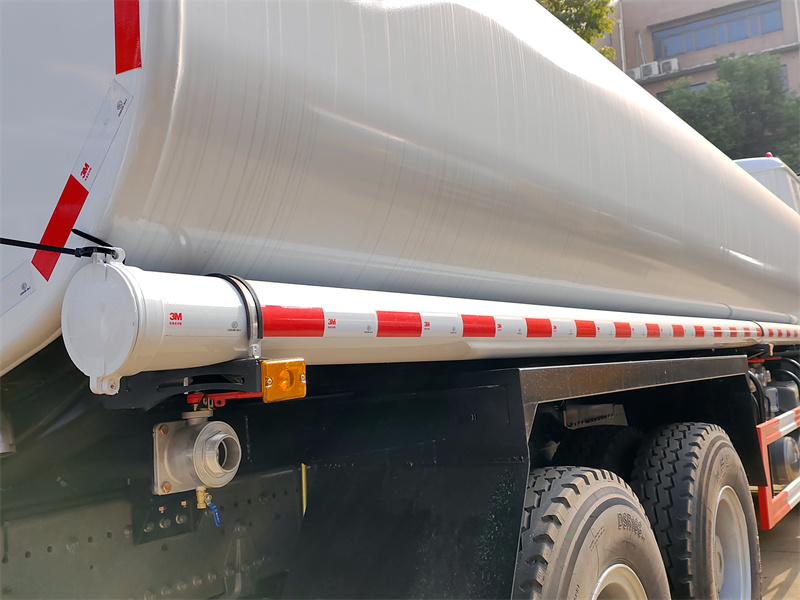

 water tanker truck pipeline system

 water tanker truck pipeline system



Working principle:

The water sprinkler utilizes the chassis engine as its power source, and transfers the engine power to a dedicated water sprinkler pump through a power take-off device, forming complete functions of water suction, pressurization, and spraying.



•  Pumping/water filling principle (pump inlet)

After the pump is started, the impeller rotates, creating negative pressure, which draws external water sources (such as fire hydrants, rivers, ponds, and water towers) into the tank through the pump inlet pipeline. By relying on negative pressure suction and pump pressure delivery, rapid water injection is achieved.

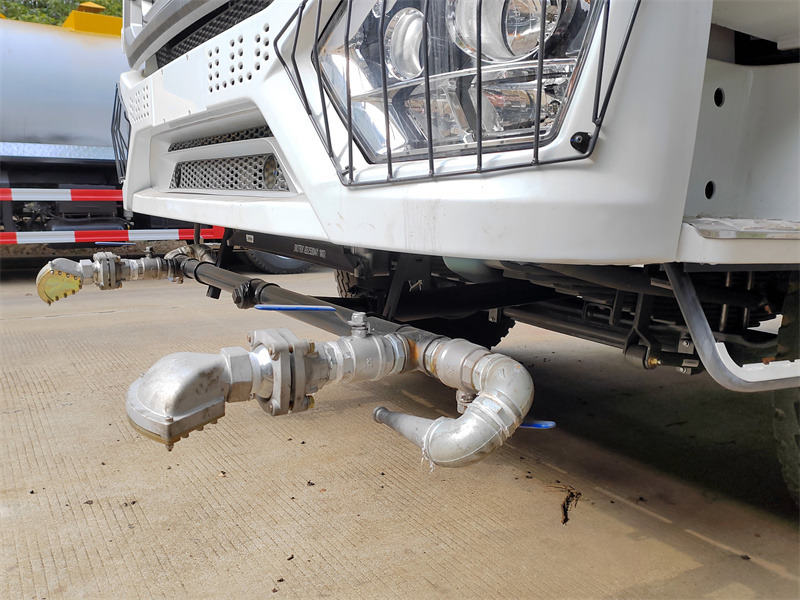

  • front flushing
    Front flushing

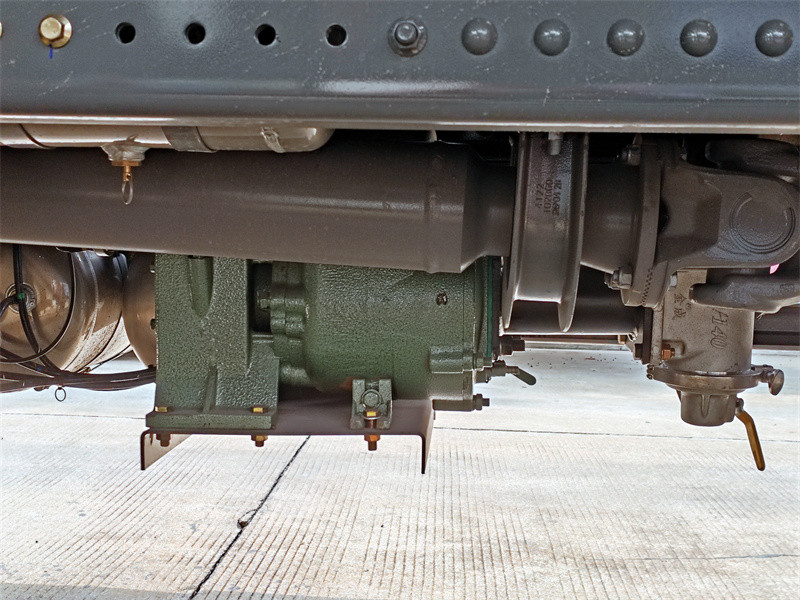

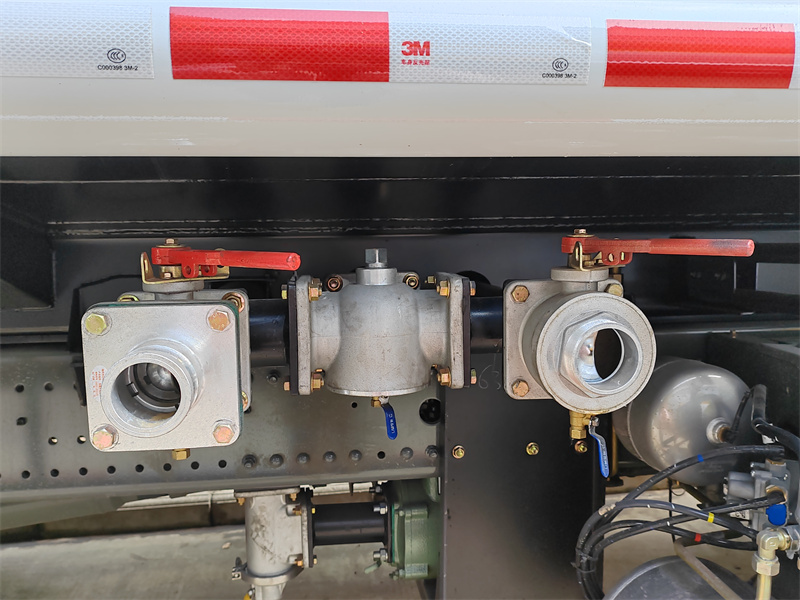

  • Pump in and out
    Pump in and out

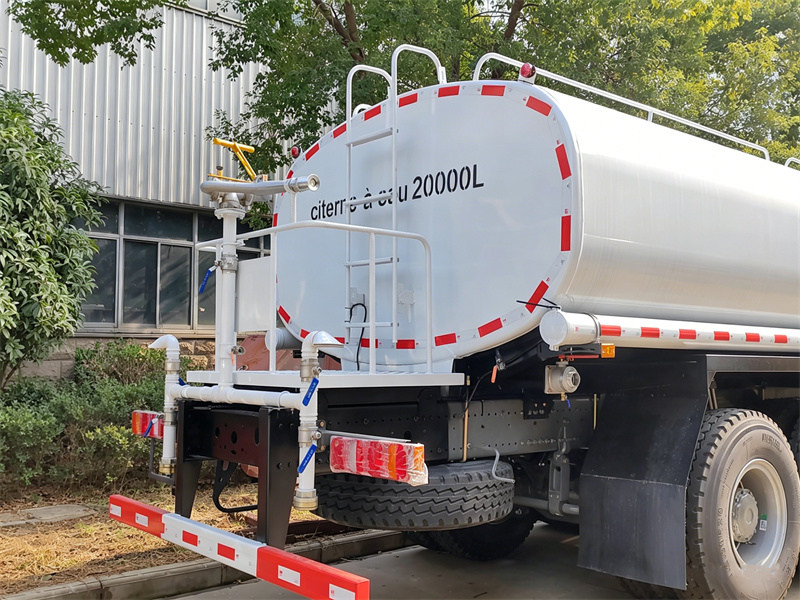

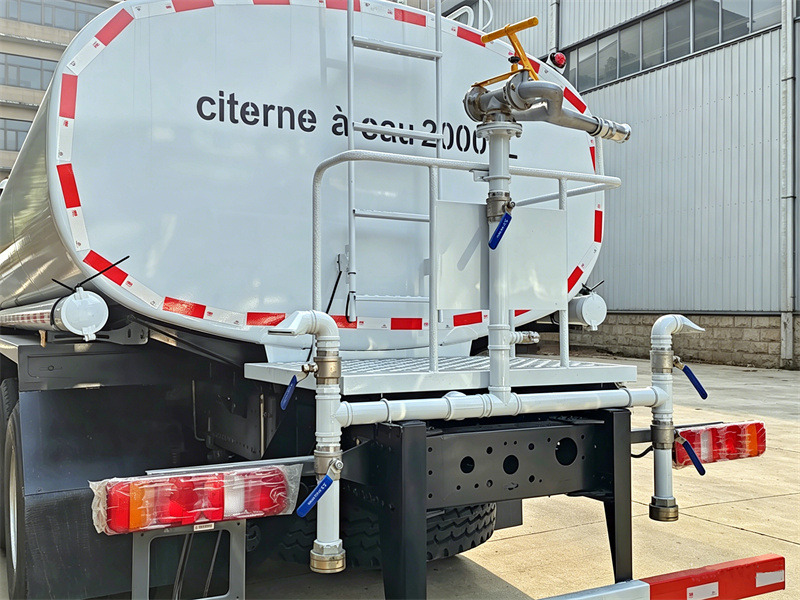

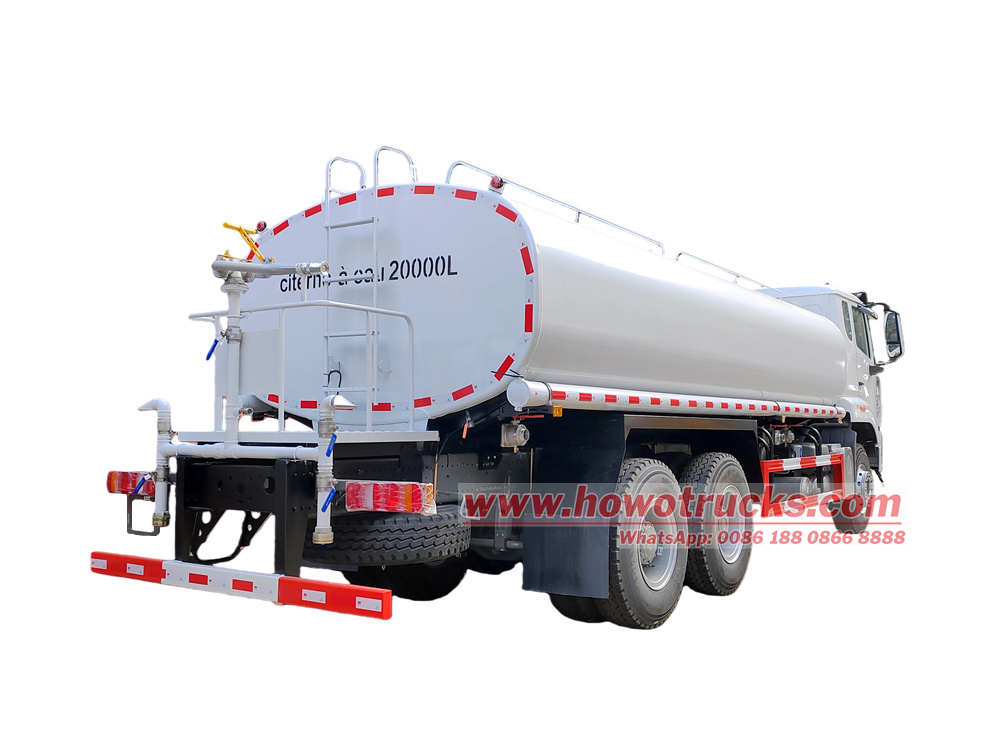

  • Rear spray and cannon
    Rear spray and cannon



•  Spraying operation principle (pumping out)

The water in the tank enters the water pump under the action of gravity, and after being pressurized by the pump, it is transported to various working devices through pipelines.



 Applications in CONGO:



• Washing and watering for dust suppression on urban roads, national highways, and expressways



• Watering the green belts and spraying the nursery



• Dust suppression at construction sites, mining areas, coal yards, and docks



• Emergency firefighting, temporary water supply

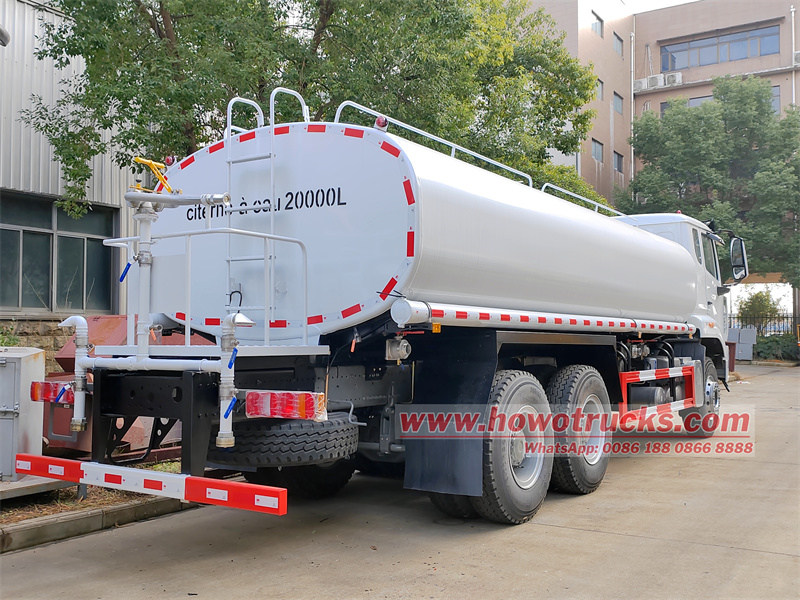

HOWO 20000 liters water spraying truck
